Klimax System

The Klimax system reads like a designer wishlist: sound quality beyond compare; stunning looks and build quality; one discreet unit machined from a single block of aluminium and flanked by a pair of gorgeous loudspeakers. This isn’t just the last music system you’ll ever need — it’s the last system you’ll ever want.

Featuring Klimax DSM, our best digital music player with inputs, and Klimax 350A, our highest-performing speakers with built-in power amplification, this an incredibly simple system which will make anything you listen to at home sound better.

Try this system









Klimax DSM

The best way to listen to music at home, Klimax DSM is a digital music player which plays everything and sounds amazing.

Browse your music library using an iPad for the best experience, choosing albums by cover and creating playlists with your favourite songs or tracks. Get instant access to new music via internet radio and listen to any online music services on a music player which puts quality first.

With analogue and digital inputs, you can also connect any movie, games or audio source and make it sound incredible.



klimax-dsm

Take a closer look magnify

  • Plays digital music over a standard Ethernet network
  • Built-in pre-amplifier with separate analogue and digital volume control circuits for each type of source
  • Streams internet radio, podcasts and 'listen again' broadcasts
  • Decodes FLAC, WAV, ALAC, MP3, WMA, AIFF, AAC and OGG audio formats with up to 24-bit 192 kHz native sample rate
  • Songcast support allows synchronised playback of audio around the home
  • 8 inputs (Balanced (XLR), HDMI, S/PDIF, Toslink) for connection and up-sampling of additional sources
  • Dual mono analogue volume control circuit separates left and right channels, ensuring significantly reduced harmonic distortion and lower noise floor
  • Balanced (XLR) input, plus balanced (XLR) and unbalanced (RCA) outputs
  • HDMI, S/PDIF and TOSLINK inputs, plus HDMI pass-thru
  • Dual mono analogue volume control circuit
  • Linn Dynamik Switch Mode Power Supply (SMPS)
  • Acoustic enclosure machined from a single billet of aluminium
  • Compatible with UPnP™ media servers and UPnP™ AV 1.0 control points

Any sources you connect to your DSM System via HDMI will sound better as they will benefit from the superior DAC and custom Linn up-sampling of the audio. Any video content on the HDMI signal will be passed through to the TV or output device connected via the HDMI out. Audio content will also be automatically passed through if the DSM is in Sleep mode.

With HDMI inputs, you can now play back SACD (Super Audio CD) and DVD-A (DVD Audio) discs by connecting the disc player to your DSM System. SACD content will be down-sampled to 176.4 K or 88.2 k and multi-channel audio down-mixed to stereo but this does allow high-quality playback of discs which cannot currently be ripped for streaming.

Analogue and digital sources use their own dedicated and isolated volume control circuits. Analogue volume control is used for analogue sources; digital volume control is used for digital sources. This shortens the signal path and reduces any potential effects that an analogue volume control circuit might have on the audio quality of digital playback, and vice versa.

Date of introduction October 2011
Type Multi-source digital stream player with built in pre-amplifier
Dimensions

(H) 60 mm x (W) 350 mm x (D) 355 mm
(H) 2.3 inches x (W) 15 inches x (D) 14.2 inches
Weight 8.6 kg / 19 lb
Mains supply voltage (auto ranging) 100–120 V ac (±10%) 50–60 Hz 200–240 V ac (±10%) 50–60 Hz
Fuse 250 V, T1.6 A (not user replaceable)
Power consumption Sleep 9 W (HDMI disabled)
Sleep 10 W (HDMI enabled)
Active 22 W
Supported file types FLAC, ALAC, WAV, MP3, WMA (except lossless), AIFF,
AAC, OGG
Audio sample rates 7.35 k, 8 k, 11.025 k, 12 k, 14.7 k, 16 k, 22.05 k, 24 k,
29.4 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 k, 176.4 k, 192 k
Word depths 16–24 bits
Control protocol Compatible with UPnP™ media servers,
UPnP™ AV 1.0 control points

Back Panel Connectors
Analog inputs 1 x Balanced XLR (pair)
Analog outputs 1 x Balanced XLR (pair)
1 x Unbalanced RCA (pair)
All outputs are volume controlled (i.e. suitable for direct connection to a power amplifier or active loudspeaker)
HDMI in 3 x HDMI Type A
HDMI out 1 x HDMI Type A
S/PDIF In 2 x RCA phono
Optical In 2 x TOSLINK (JIS F05)
Ethernet 100Base-T RJ45

Input Electrical
Analog line input Input sensitivity: can be selected from 2 / 4 / 8 V RMS
Input impedance 7.8 k Ω
S/PDIF digital input Min. input voltage 0.3 V (when terminated with 75 Ω)
Input impedance 75 Ω

Output Electrical
Analog line outputs Max output voltage 2 V RMS (0 dBFS at vol. 80)
Output impedance 300 Ω

Audio Performance
Line inputs THD+N < 0.002 %
Dynamik range > 110 dB
Pre-amplifier Gain range - 80 dB to + 20 dB
Gain resolution 1 dB
Unity gain volume 0 dB = vol. 80

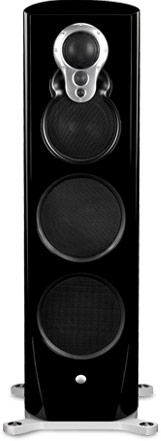

Klimax 350A Loudspeakers

klimax-350

Uncompromising in every conceivable aspect, Klimax 350A is the perfect pair of speakers for listening to music.

Klimax 350A features our unique 3K Driver Array technology, a beautifully machined die-cast array which improves high frequency performance and ensures the same exceptional level of audio quality throughout the room.

Klimax 350A is a fully integrated Aktiv loudspeaker, with six channels of Linn's patented Chakra amplification expertly housed within the sculpted cabinet and an Aktiv Servo Bass system which precisely measures and auto-corrects the output to produce extremely accurate and musical bass performance.

Take a closer look magnify

  • Linn-designed 3K Driver Array for wider dispersion, precise high frequency response and single-point source accuracy
  • Aktiv Servo-Driven Bass system for more accurate, musical bass
  • Highly efficient Chakra power amplification fully integrated within cabinet
  • Plasma-cut ‘armour-grade’ steel plate loudspeaker stand provides rock-solid stability
  • Standard and high gloss real wood veneer or choose from over 200 bespoke colour finishes
  • Optional surround sound variants include centre channel and bass re-inforcement loudspeakers

Delivering an unprecedented level of clarity and detail, Linn’s highest performing fully integrated multi-channel loudspeaker range is the ultimate stereo or surround sound playback solution for music and movies.

The range comprises three fully integrated Aktiv models with built-in power amplification: 350A Floor-stander, 340A Centre Channel and 345 Bass Re-inforcement loudspeaker (345). A passive variant of the Floor-stander (350) is also available.

The 3K Driver Array gives outstanding high frequency reproduction and allows greater flexibility when positioning the loudspeakers. The precision machined die-cast array houses the mid-range, high-frequency and super high-frequency drive units for wider dispersion, precise high-frequency response and single point source accuracy, delivering a consistently natural sound.

The Aktiv Servo-Driven Bass System powers the bass drive units. The precise motion of each unit is measured, compared against the original input signal, and immediately corrected to ensure that the output perfectly matches the input, resulting in an extremely accurate and musical bass performance.

All Aktiv models benefit from Linn’s ‘Silent Power’ amplification technology, Chakra, which offers significantly increased power, reliability and efficiency, whilst producing less heat and distortion.

Advanced pressure-formed natural laminate cabinets provide an exceptionally rigid construction with ultra-low resonance properties. High grade real wood veneers are used throughout and are available in special high gloss finishes and bespoke colours to perfectly complement any living space.

Introduced April 2008
Type 6-way floor-standing loudspeaker with Aktiv bass
Drive units 13 mm (0.5”)
25 mm (1”)
75 mm (3”) domes
165 mm (6.5”) upper bass
2 x 200 mm (8”) servo lower bass
Operating volume 50 litres
Crossover options Fully Aktiv (internal modules)
Crossover points 105 Hz, 392 Hz, 3.8 kHz, 10.9 kHz
Bass roll-on 19 Hz, 40 Hz, 60 Hz
Nominal impedance 4 Ω
Frequency range 20 Hz - 33 kHz
Mains supply frequency 50-60 Hz
Mains input voltage (auto-sensing) 90-135 V
180-265 V
Connection options Balanced XLR
Magnetic shielding Yes
Weight (excluding stand) 54 kg / 119 lb
Dimensions 1130 mm (H) x 312 mm (W) x 430 mm (D)
Standard finishes Black Ash, Rosenut, Walnut, Cherry, Oak, White
High gloss finishes Black Ash, Rosenut, Walnut, Cherry, Oak, White
+ 208 RAL Classic
High gloss colours All 213 RAL Classic Gloss colours are available (except luminous colours: RAL 3026, 3024, 2007, 2005 and 1026).
